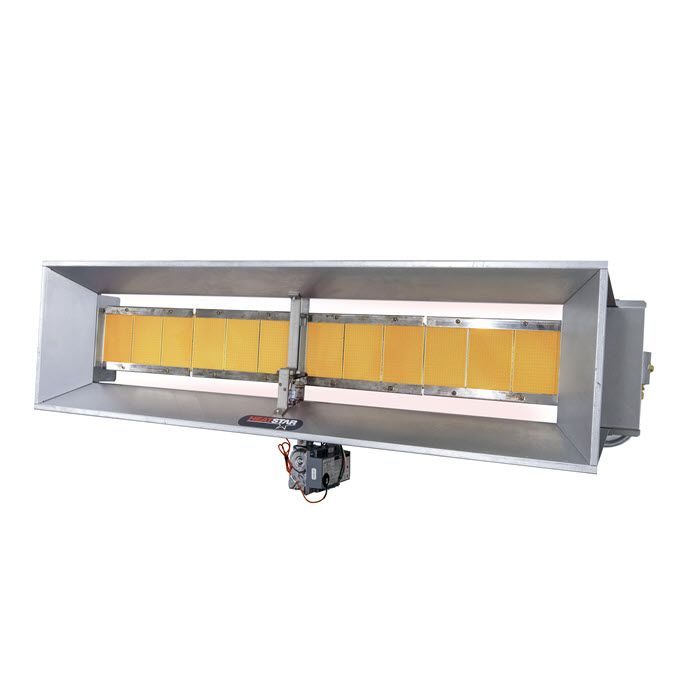

100,000 BTU Natural Gas High Intensity Radiant Power Pile Industrial Heater

SKU
F191826
Model: HS9100SPPNG
9100S Series High Intensity Overhead Radiant Heater, power pile ignition, for natural gas
  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction
9100S Series Heaters arrive set up to operate at 100,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 80,000 or 90,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by natural gas. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Weight46
Fuel TypeNatural Gas
IgnitionManual
Electrical RatingNot Applicable
Electrical ConnectionNot Applicable
Transformer IncludedNot Applicable
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min7in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range15ft - 28ft
Clearance to Combustibles: HorizontalTop 40in; Side 30in; Back 30in; Below 118in
Venting RequiredNot Required
Thermostat OptionalSold Separately
Item Length (in)64
Item Width (in)26.75
Item Height (in)13.25
Item Weight (lb)56
Warranty: Gas Control1 Year Limited
Warranty: Burner10 Year Limited Pro-Rated
ModelHS9100SPPNG
