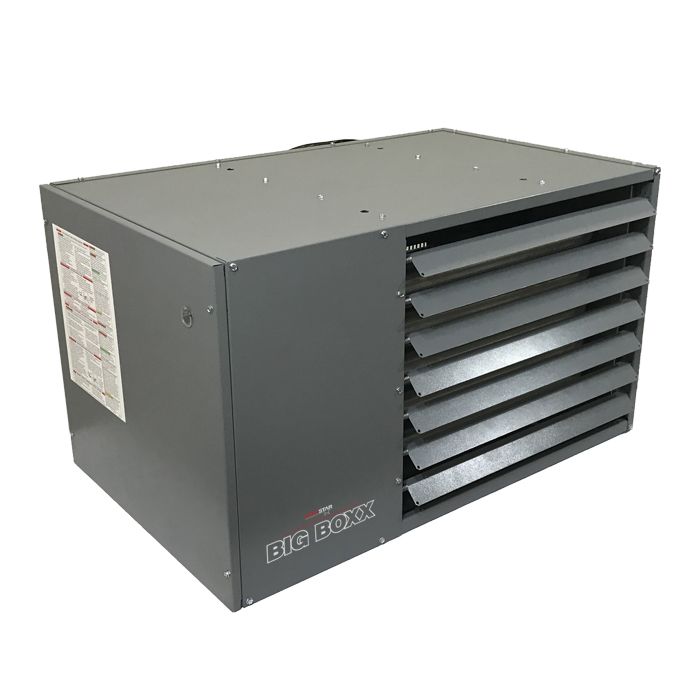

125,000 BTU Indirect Fired Utility Industrial Heater with NG to LP Conversion Kit Series
Model: HSU125NG
Designed for use in spaces adjacent to a residence. These heaters use a finer mesh fan guard and utility grade safety switches to meet the CSA Utility Heater standard.
If you are looking to turn your garage or barn into a work space you can use all year-round, you will have to find a safe quiet and reliable heat source. This 125,000 BTU Natural Gas Unit heater is the way to go. It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas. These heaters only require 115v AC power and can be vented vertically or horizontally - please check local codes and restrictions. With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch. With the Durable Spark ignition and robust factory standard self-diagnostic control module, we can offer a 3 year factory warranty on all parts and burners and a 10 year warranty on any defects in the heat exchanger. This heater offers the operating versatility and safety that you have come to expect from HeatStar.
- 125,000 BTU per hour
- For use with natural gas
- Heats up to 4,167 sq.ft.
- Spark ignition features self-diagnostic control module
- Includes 2 angle brackets for ceiling mount
- Low Profile Design - Can be installed in low-ceiling buildings
- Minimum 8ft clearance from floor to base of heater required
- 1/2in gas connection
- Category 1 vertical, category 3 horizontal venting
- LP conversion Kit included
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Download Prop 65 Statement
| Input BTU | 125,000 |
|---|---|
| Heating Area (Sq Ft) | 4,167 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 1in; Behind 18in; Sides 1in |
| Venting: Exhaust | 4in Diameter |
| Heat Exchanger | Aluminized Steel Tubing |
| Thermostat Optional | N/A |
| Fuel Type | Natural Gas or Propane |
| Ignition | Electronic |
| Item Length (in) | 31.75 |
| Item Width (in) | 30 |
| Item Height (in) | 30.5 |
| Item Weight (lb) | 121 |
| Warranty | 3 Year Limited on Parts & Burner, 10 Year on Tube |
| Model | HSU125NG |
