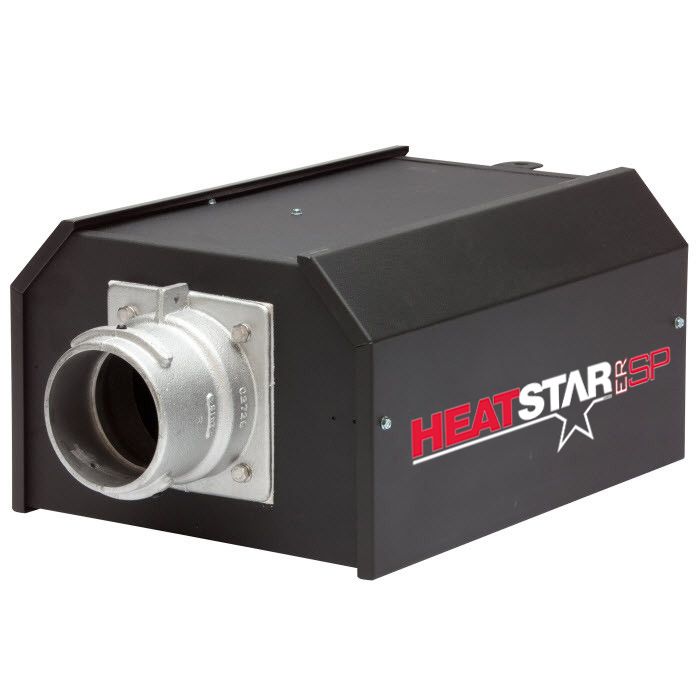

150,000 BTU ERSP Single Stage Series
Model: ERSP150-N / ERSP150-LP
| Item # | Product Name |
|---|---|
| F102658SP | 150,000 BTU Single Stage Burner Box Control SP-150N |
| F102659SP | 150,000 BTU Single Stage Burner Box Control SP-150LP |
| F106407XL | Tube Set - 125,000-175,000 BTU 50ft ERXL |
| F106403XL | Tube Set - 150,000-175,000 BTU 60ft ERXL |
| F111754 | ERXL Installation Kit for 50ft Unit |
| F111755 | ERXL Installation Kit for 60ft Unit |
| 11740 | Conversion Kit 150,000 BTU ER2 and ERXL LP to NG |
| 11741 | Conversion Kit 150,000 BTU ER2 and ERXL NG to LP |
HeatStar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102658SP) or propane (F102659SP), 10-ft (F106407XL) or 60-ft (F106403XL) tube set sold separately.
- 10 Year Limited Warranty
- 16-Gauge Aluminized Tubing
- Outside or Inside Air for Combustion
- Sealed Burner Control Box
- Full Cover Polished Aluminum Reflector
- Installs easily as Straight or U-Tube Configuration
- Category I Vertical Venting
- Category III Horizontal Venting
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Input BTU | 150,000 |
|---|---|
| Electrical Rating | 120V |
| Electrical Connection | Pigtail Leads in Junction Box |
| Gas Inlet Connection | 1/2in ID FPT |
| Mounting Height Range | 15-ft - 25-ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 87in; Sides 36in |
| Venting: Length Min/Max | 25-ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25-ft |
| Thermostat Optional | Optional |
| Fuel Type | Natural Gas or Propane |
| Warranty | 10 Year Limited |
| Certification | CSA |
| Model | ERSP150-N / ERSP150-LP |
