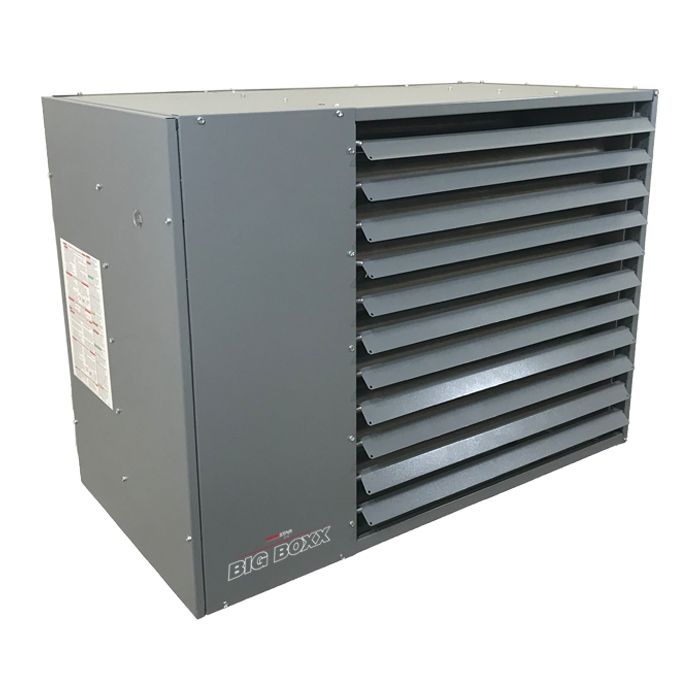

250,000 BTU Power Vented Stainless Steel Heat Exchanger Unit Heater
SKU
F163054
Model: HSU250NGPSSP
The HeatStar 250,000 Power Vented Unit Heater keeps factories or warehouses warm. Enjoy 250,000 BTU heat covering 8,400 sq ft. Power vent clears exhaust from building.
- Power vented units
- Powder coated cabinet
- 82% thermal efficiency
- Air louvers with 3 locking positions
- All models ship equipped for natural gas
- (LP conversion kit sold separately)
- Easily installs using 3/8-in -16 threaded rods (sold separately)
- 3 Year Limited Warranty on parts
- (Limited to 1 year in high humidity or caustic environments)
- 10 Year Limited Warranty on aluminized steel heat exchanger
- (Limited to 5 years when installed in corrosive environments
- 10 Year Limited Warranty on stainless steel heat exchanger
The HeatStar 250,000 BTU Power Vented Unit Heater provides big heat for big spaces. With 250,000 BTU heat, the heater spreads warmth through factories or warehouses up to 8,400 sq ft. A fan pulls air from the room to be heated, and the power vent system pumps exhaust out of the building through a single vent pipe. A stainless steel heat exchanger helps protect against rust. The design minimizes labor and makes for easy installation. Air louvers with three locking positions control the direction of the heat. Work in warmth with the HeatStar 250,000 BTU Power Vented Unit Heater.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Download Prop 65 Statement
| Weight | 244 |
|---|---|
| Input BTU | 250,000 |
| Heating Area (Sq Ft) | 8,400 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 6in; Behind 18in; Sides 6in |
| Venting: Length Min/Max | 5ft - 50ft |
| Venting: Exhaust | 6in Diameter |
| Venting Direction | Horizontal or Vertical |
| Heat Exchanger | Stainless Steel Tubing |
| Thermostat Optional | Not Applicable |
| Fuel Type | Natural Gas |
| Ignition | Electronic |
| Item Length (in) | 35 |
| Item Width (in) | 40.5 |
| Item Height (in) | 29 |
| Item Weight (lb) | 244 |
| Warranty | 10 year limited on stainless steel heat exchanger (only applies to Tectoral units) |
| Model | HSU250NGPSSP |
