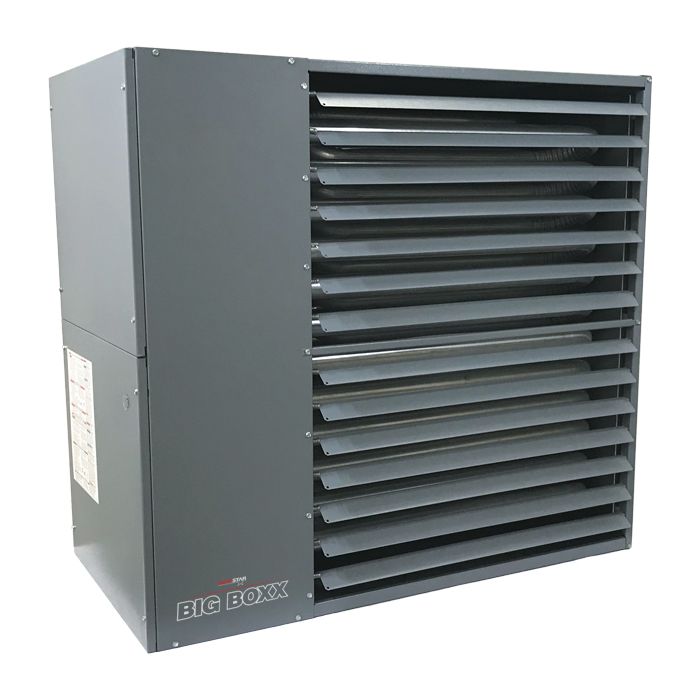

400,000 BTU Separated Combustion Stainless Steel Heat Exchanger Unit Heater Series
Model: HSU400NGPSS
The HeatStar 400,000 BTU Separated Combustion Unit Heater gives efficient heat up to 13,400 sq ft. Good for use in humid or corrosive environments.
The HeatStar 400,000 BTU Separated Combustion Unit Heater is your heat solution for factory or farm. The unit heater provides 400,000 BTU of efficient heat to cover areas up to 13,400 sq ft. Using fresh air from outside the building, the heater can be used in humid or corrosive areas, giving you an option for greenhouses or chemical factories. It can also be installed in a standard combustion configuration for versatility. A stainless steel heat exchanger gives more protection in humid atmospheres. The air louvers have three locking positions to direct heat where it is needed. Keep your workplace warm with the HeatStar 400,000 BTU Separated Combustion Unit Heater
[mgz_pagebuilder]{"elements":[{"row_type":"full_width_row","content_position":"top","gap_type":"padding","content_align":"center","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","type":"row","id":"l02lkre","elements":[{"device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","xl_offset_size":"","xl_size":"","lg_offset_size":"","lg_size":"","md_offset_size":"","sm_offset_size":"","sm_size":"","xs_size":"","type":"column","id":"rggm51f"
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Download Prop 65 Statement
| Input BTU | 400,000 |
|---|---|
| Output BTU | 328,000 |
| Heating Area (Sq Ft) | 13,400 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Clearance to Combustibles: Horizontal | Above 6in; Behind 18in; Sides 6in |
| Venting: Exhaust | 6in Diameter |
| Heat Exchanger | Stainless Steel Tubing |
| Thermostat Optional | N/A |
| Fuel Type | Natural Gas (LP Conversion Kit Available) |
| Ignition | Electronic |
| Item Length (in) | 36.3 |
| Item Width (in) | 40.5 |
| Item Height (in) | 40 |
| Item Weight (lb) | 341 |
| Warranty | 10 year limited on stainless steel heat exchanger (only applies to Tectoral units) |
| Model | HSU400NGPSS |
