60,000 BTU ERSP Single Stage Series
Model: ERSP60-LP / ERSP60-NG
| Item # | Product Name |
|---|---|

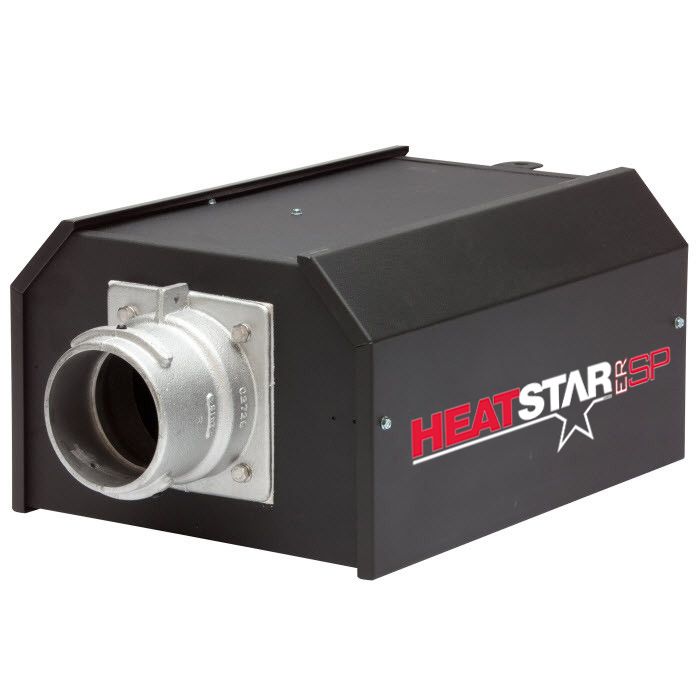

| F102650SP | 60,000 BTU Single Stage Burner Box Control SP-60LN |
| F102651SP | 60,000 BTU Single Stage Burner Box Control SP-60LP |
| F106404XL | Tube Set - 60,000-80,000 BTU 20ft ERXL |
| F111751 | ERXL Installation Kit for 20ft Unit |
| 11732 | Conversion Kit 60,000 BTU ERXL LP to NG |
| 11733 | Conversion Kit 60,000 BTU ERXL NG to LP |
HeatStar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102650SP) or propane (F102651SP). 20-ft tube set (F106404XL) sold separately.
- 10 Year Limited Warranty
- 16-Gauge Aluminized Tubing
- Outside or Inside Air for Combustion
- Sealed Burner Control Box
- Full Cover Polished Aluminum Reflector
- Installs easily as Straight or U-Tube Configuration
- Category I Vertical Venting
- Category III Horizontal Venting
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Input BTU | 60,000 |
|---|---|
| Electrical Rating | 120V |
| Electrical Connection | Pigtail Leads in Junction Box |
| Gas Inlet Connection | 1/2in ID FPT |
| Mounting Height Range | 10-ft - 14-ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 55in; Sides 36in |
| Venting: Length Min/Max | 25-ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25-ft |
| Thermostat Optional | N/A |
| Fuel Type | Natural Gas or Propane |
| Warranty | 10 Year Limited |
| Certification | CSA |
| Model | ERSP60-LP / ERSP60-NG |
