80,000 BTU ERSP Single Stage Series
Model: ERSP80-N / ERSP80-LP
| Item # | Product Name |
|---|---|

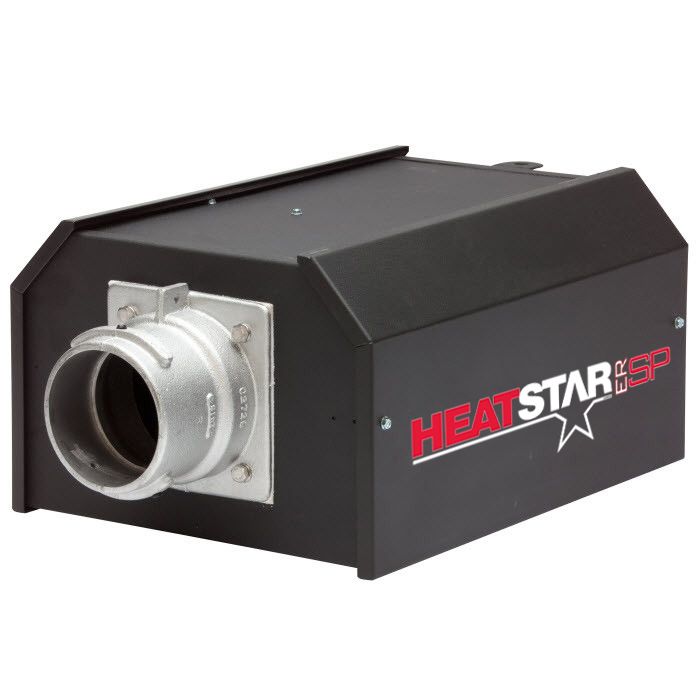

| F102652SP | 80,000 BTU Single Stage Burner Box Control SP-80N |
| F102653SP | 80,000 BTU Single Stage Burner Box Control SP-80LP |
| F106405XL | Tube Set - 80,000 BTU 30ft ERXL |
| F111751 | ERXL Installation Kit for 20ft Unit |
| 11734 | ERXL Conversion Kit 8000 - LP To NG |
| 11735 | Conversion Kit 80,000 ERXL NG to LP |
HeatStar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. This heater comes as either natural gas (F102652SP) or propane (F102653SP), 20-ft tube set (F106404XL) or 30-ft (F106405XL) sold separately.
- 10 Year Limited Warranty
- 16-Gauge Aluminized Tubing
- Outside or Inside Air for Combustion
- Sealed Burner Control Box
- Full Cover Polished Aluminum Reflector
- Installs easily as Straight or U-Tube Configuration
- Category I Vertical Venting
- Category III Horizontal Venting
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Input BTU | 80,000 |
|---|---|
| Electrical Rating | 120V |
| Electrical Connection | Pigtail Leads in Junction Box |
| Gas Inlet Connection | 1/4in |
| Mounting Height Range | 12-ft - 15-ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 55in; Sides 36in |
| Venting: Length Min/Max | 25-ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25-ft |
| Thermostat Optional | N/A |
| Fuel Type | Natural Gas or Propane |
| Warranty | 10 Year Limited |
| Certification | CSA |
| Model | ERSP80-N / ERSP80-LP |
