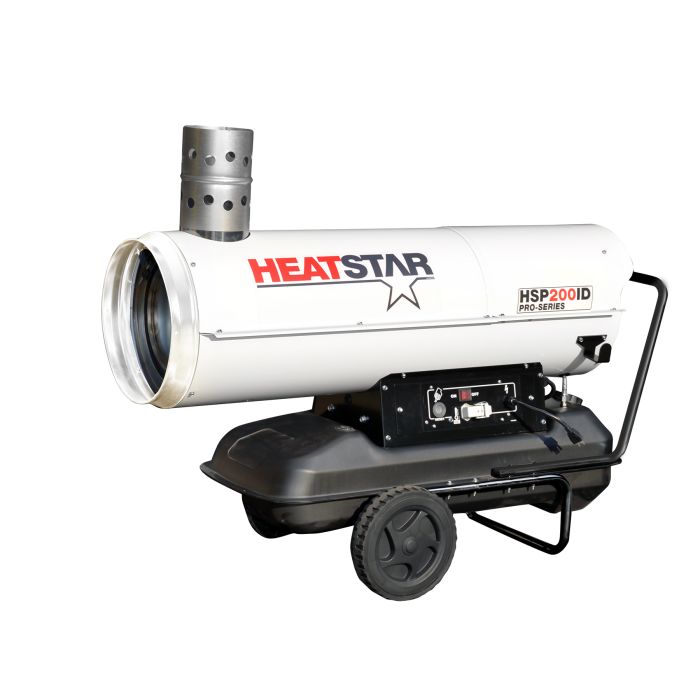

HSP200ID: Indirect Fired Construction Heater
SKU
F105115
Model: HSP200ID
The HSP200ID Indirect Fired Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.
- Heat exchanger to keep exhaust gas and heated air separate
- 17 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
HeatStar PRO-SERIES 180,000 BTU/HR Indirect Fired Heater. The HSP200ID is an ideal heating soloution when paired with 50' of 14" duct and a remote thermostat. This indirect fired heater is an ideal solution for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the heater outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way it is hard to beat the comfort and safety of indirect heat.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 185 |
|---|---|
| Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
| Tank Capacity (Gal) | 17 |
| Ignition | Continuous |
| Electrical Rating | 120v, 60 HZ, 13 Amp |
| Air Volume (CFM) | 1060 |
| Heated Fuel Filter | Standard |
| Heated Nozzle | No |
| Clearance to Combustibles: Horizontal | 6 ft |
| Adapter | F105111 Single (14") / F105117 Dual |
| Recirculating Ducting | Optional |
| Duct Length Max | 50 ft |
| Duct Diameter | 14 in |
| Multiple Ducting Optional | Optional |
| Wheel Type | Solid Rubber |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Item Length (in) | 52.55 |
| Item Width (in) | 22.63 |
| Item Height (in) | 39.37 |
| Item Weight (lb) | 185 |
| Warranty | 1 Year Limited |
| Model | HSP200ID |
Download Prop 65 Statement
