500,000 BTU (MAX) Indirect Fired Heater - Series Page

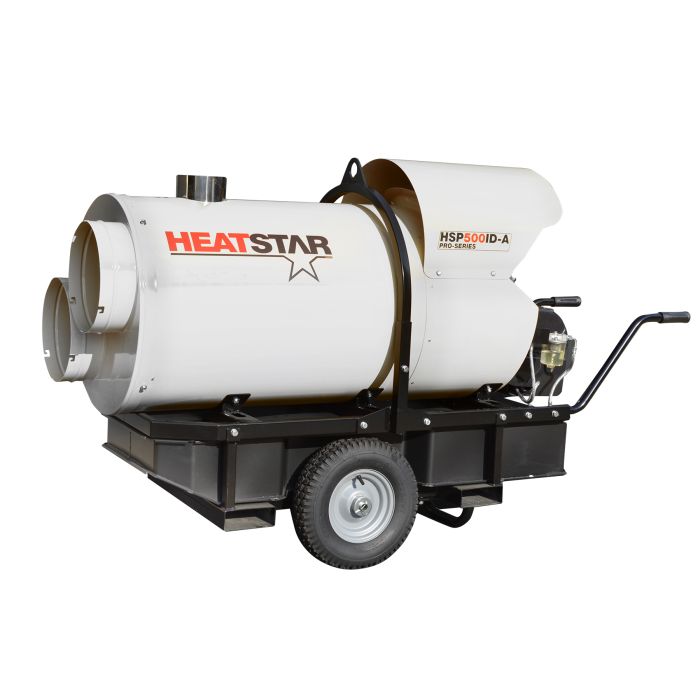

Model: HSP500ID-A
The HSP500ID-A Indirect Fired Heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event tents, food preparation areas, exhibition halls, and construction sites. They can be used with flexible duct that spreads the warm air around easily.
| Item # | Product Name |
|---|---|
| F105125 | HSP500ID-A: Indirect Fired Construction Heater |
| F105106 | HSP Pro-Series: Digital Thermostat |
| F105108 | HSP Pro-Series: Remote Analog Thermostat |
| F105126 | HSP Pro-Series: Single Duct Adapter (16in) |
| F105127 | Air Recycle System for HSP500ID-A and HSP400ID-G |
| F150040 | 12in Flexible Heat Duct |
| F150050 | 16in Flexible Heat Duct |
| F151084 | 20in x 25ft Flexible Duct for HS4000ID |
| 50726 | 6in Pipe for HSP100-500ID |
| 50727 | 6in high wind cap for HSP100-500ID |
| 51267 | Nozzle for HSP500ID-A |
Heatstar PRO-SERIES 400,000 BTU/HR Indirect Fired Heater. The HSP500ID-A (F105125) is an ideal heating solution for any large Industrial or rental application. Unit ships with factory installed dual 12" duct adapters. When paired with up to 100' of HeatStar high quality high temperature ducting, this indirect fired heater is an ideal heating system for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the unit outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way it is hard to beat the comfort and safety of indirect heat.
- Heavy duty frame
- Lift bracket
- Heat exchanger to keep exhaust gas and heated air separate
- 46 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 573 |
|---|---|
| Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
| Tank Capacity (Gal) | 46 |
| Ignition | Continuous |
| Electrical Rating | 120v, 60 HZ, 13 Amp |
| Air Volume (CFM) | 4032 |
| Heated Fuel Filter | Standard |
| Heated Nozzle | No |
| Clearance to Combustibles: Horizontal | 6 ft |
| Adapter | F105126 Single (16") / Standard Dual 12" Attached |
| Recirculating Ducting | F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp |
| Duct Length Max | 100 ft |
| Duct Diameter | Standard Dual (12in) or Single F105126 (16in) |
| Multiple Ducting Optional | F150040 12in x 25ft / F150050 16in x 25ft |
| Wheel Type | Pneumatic |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Item Length (in) | 64 |
| Item Width (in) | 27 |
| Item Height (in) | 60 |
| Item Weight (lb) | 573 |
| Warranty | 1 Year Limited |
| Model | HSP500ID-A |
